Front, loaded and lit — blue LED from the sides, digital panel at the centre of the cabinet.

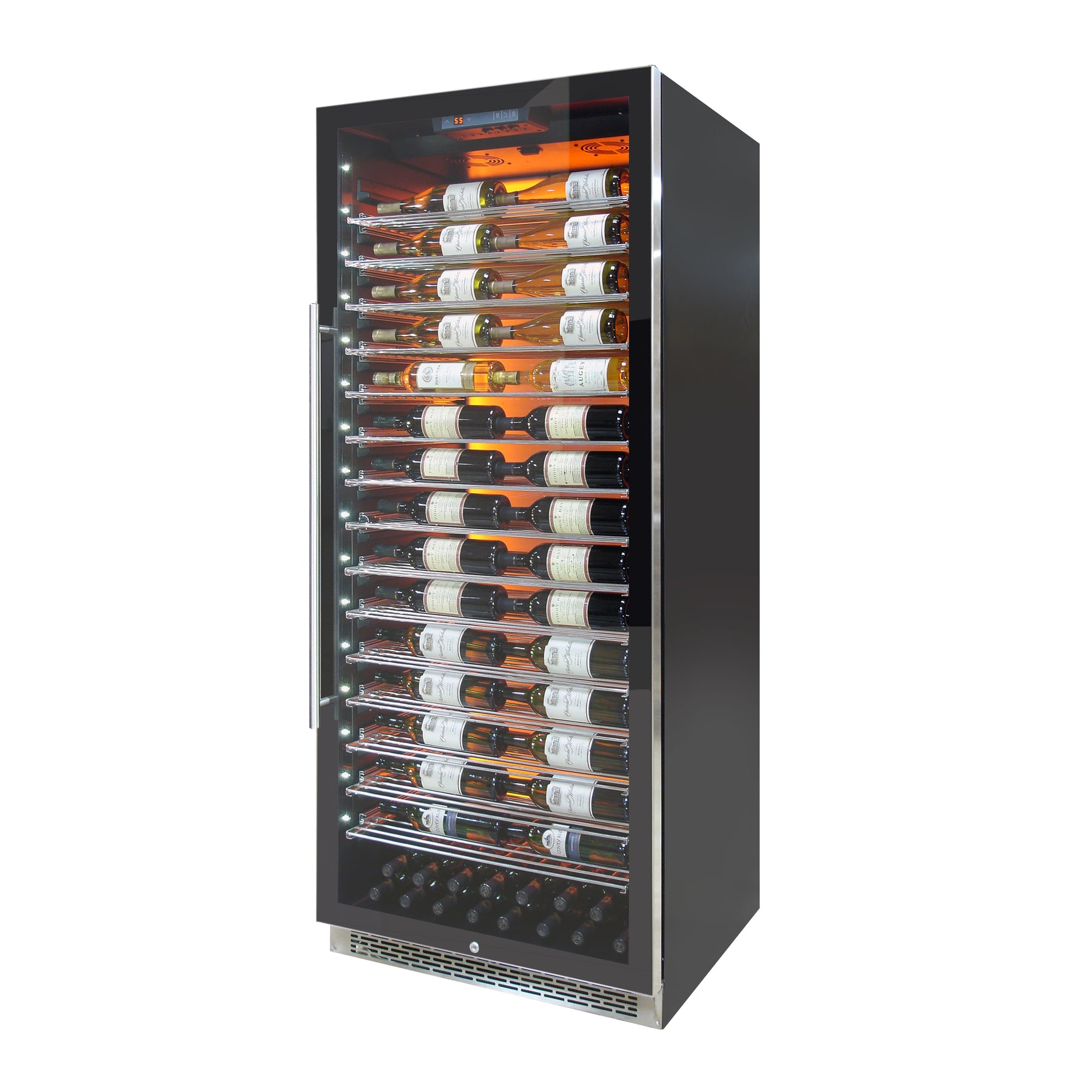

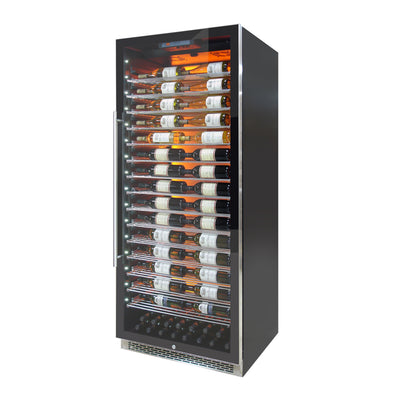

Vinotemp Backlit Series Commercial 300 Wine Cooler, Reversible Hinge, 188 Bottle Capacity, in Black
Vinotemp's Private Reserve Series 188-Bottle wine cooler has innovative features such as telescopic shelves, label forward wine bottle display, interior Backlit™ in three different colors, and LED side lighting to maximize your display capability. This Vinotemp wine refrigerator is front venting with easy installation to build in and fit perfectly in any kitchen or bar area. The commercial style wine cooler is an entertainer's delight with three different color options to display whatever mood fits. The design forward wine cooler features vibration-damping design to better protect its contents and is engineered for low energy consumption and low noise. Its patented interior Backlit™ panel has three different options - Heliotrope, Amber, and Vinotemp BioBlu™ (which helps reduce the growth of bacteria and mold) - and can be selected at any give time. Adjustable temperature range allows users to select a proper, customized storage and serving temperature for light or darker wines. Sturdy, stylish patented label forward VinBo™ Racks cradle bottles so the labels of wine stored are front facing while the racks glide and extend forward, adding to the cooler's visual appeal and function. A digital LED temperature display makes temperatures easy-to-read and ensures wine is being stored and served at the appropriate temperature.
- Capacity: approx. 188 750ML Bordeaux bottles and may include bulk storage
- Application: Front exhaust for built-in or free standing installations
- Temperature Range: 41°- 64°F
- Ambient Temperature Range: 41° - 100°F / Humidity 45~90%
- Controls: Digital Temperature Controls
- Patented interior Backlit™ (baklīt) panel: Heliotrope, Amber, and Vinotemp BioBlu™ back-lit (U.S. Patent No. D868,849 S)
- Patented Label forward, VinBo™ Racks (U.S. Patent No. D910,089 S)
- Shelves can be adjusted to accommodate more or less bottles
- Top rack and bottom storage compartment can fit larger style bottles like Champagne and Magnum
- Comes with a charcoal filter
- Indoor/Outdoor: Indoor only
- Security Lock: Yes
- Rated Voltage: AC 115V
- Frequency: 60 Hz
- Comes available with reversible door hinge
- ETL listed for residential and commercial use
- 1 7/8" caster size
- Can be adjusted 3/4" up or down

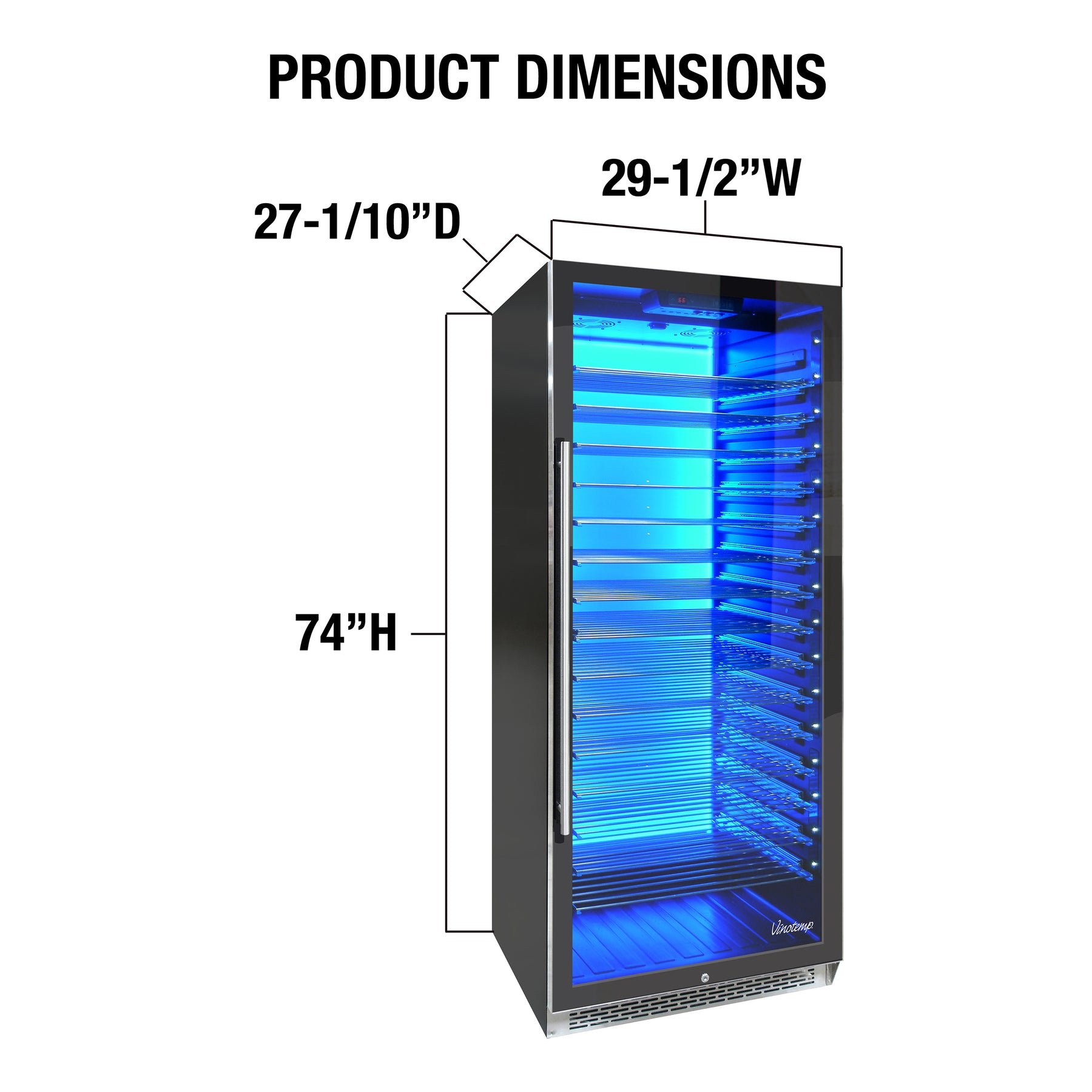

- 29 1/2"W X 27 1/10"D X 74"H (73 3/5"H if not measuring top cover of door hinge)
- This item is CEC Compliant
Important information regarding Prop. 65 for CA residents.
Prop. 65 Warning Label (PDF)
Now Offering: Technical Veneer Wrap
Create a stylish, contemporary look for your home with a technical veneer wrap for your wine cooler. This custom-made wood paneling wraps around your entire wine cooler to make it smoothly blend in with your furniture. Wood wrap as shown is at an additional cost. If adding this wrap, it must ship with the unit (shipping cost is included in price). Veneers are available in Okanagan, Spring Blossom, Exotic Walnut, and Chocolate. Please call 800.777.8466 for a quote.
Additional Display Lighting & VinBo™ Racks

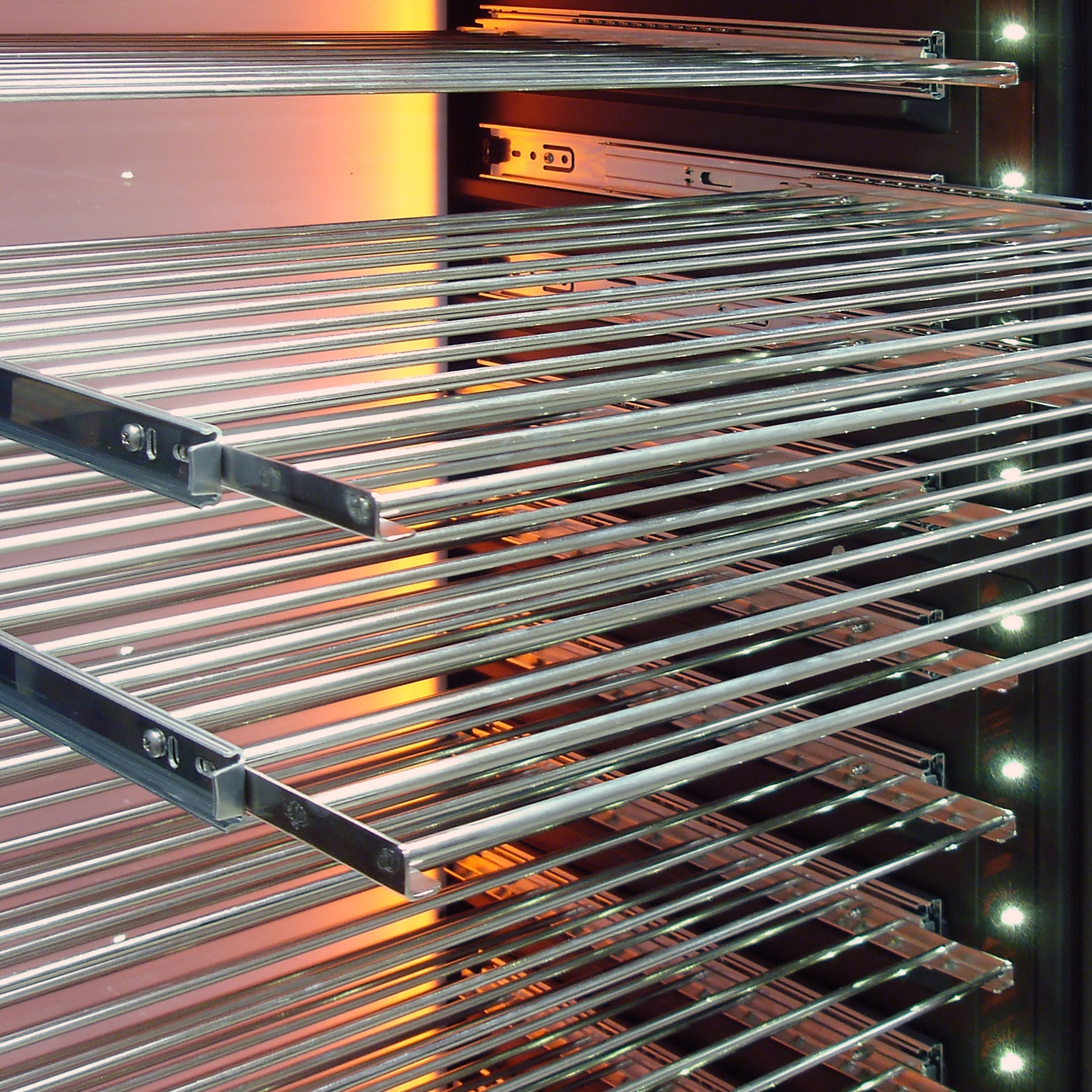

In addition to the 3 Backlit™ lighting options, there are side LED lights in BioBlue that line both sides of the unit. Glide out VinBo™ racks allow for a full view of your wine bottle lables.
Protective Rack Insert
These new rack inserts provide extra protection for your wine bottles and help prevent them from sliding out.
Storage Areas for Larger Bottles
Top rack and bottom storage compartment can accommodate larger style Champagne and Magnum bottles.



EL-300COMM unit can be installed side by side with EL-300COMM-L (left-hinge) unit.

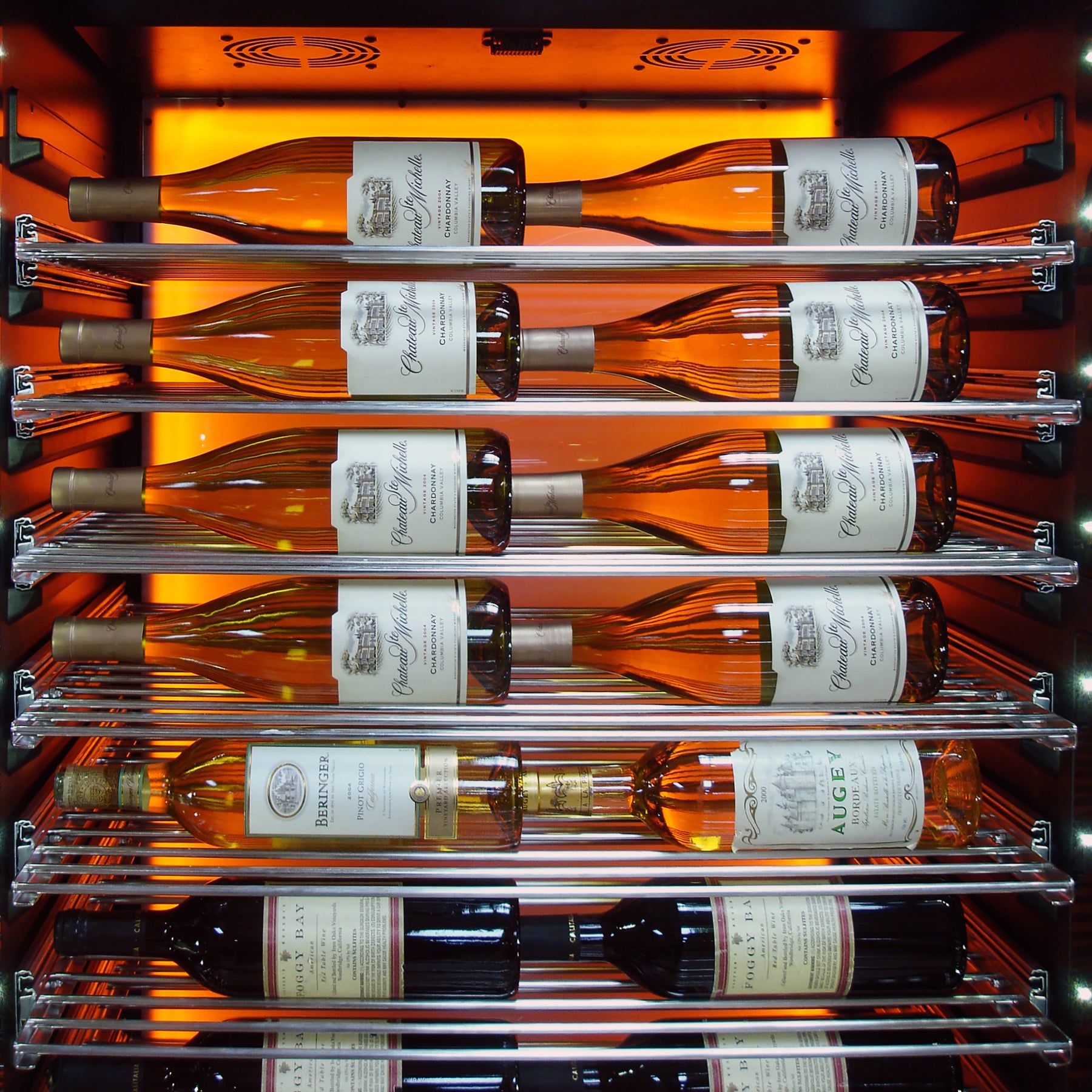

Shelves have a wooden lip with grooves that hold bottles in place
Bulk storage areas take Champagne and Magnum formats
Capacity 119–215 bottles depending on how they are placed
If stacking 2–3 high, do not pull out the shelves. Extra shelves are not available at this time
Blue LED interior lighting, side-mounted

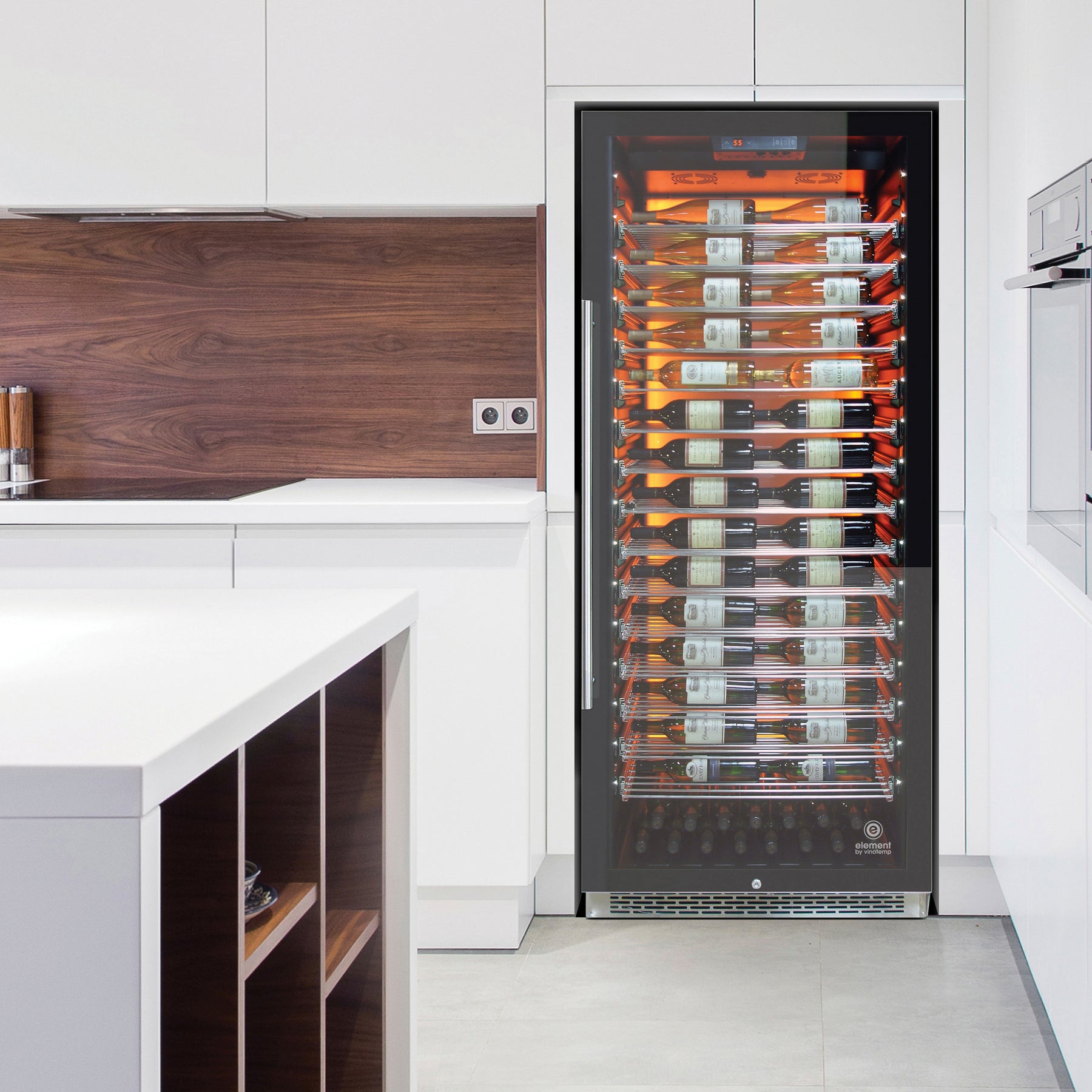

Front exhaust for built-in or freestanding installation
Right hinge, also available in left hinge
Charcoal filter included · ETL listed for residential and commercial use
Free standard curbside delivery on every order — installation and haul-away are not included. Allow 3–5 days for processing before the unit ships. Two people should be on hand at delivery: the cabinet weighs 256 lbs.
Payments are secured at checkout. Full shipping and return policy is available before you order.
The three things you touch every day
Digital Control PanelSet the temperature in Celsius or Fahrenheit and switch the lights on or off — no menus to learn.
Sturdy Wire RacksMetal racking holds every bottle in place, so nothing shifts when the door closes.
Top Interior LightSoft interior lighting puts the collection on display without warming a single bottle.
