• This unit is a self-contained system and ready for use

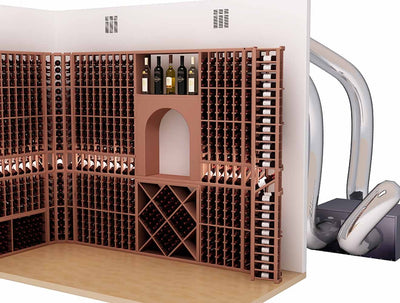

• Designed to provide chilled air to a wine cellar through insulated ducts to provide quieter operation and better installation flexibility.
• These cooling systems can be installed up to 25 ft away from the cellar since the back-curved impeller fans are so powerful to run a total duct length of 50 ft.

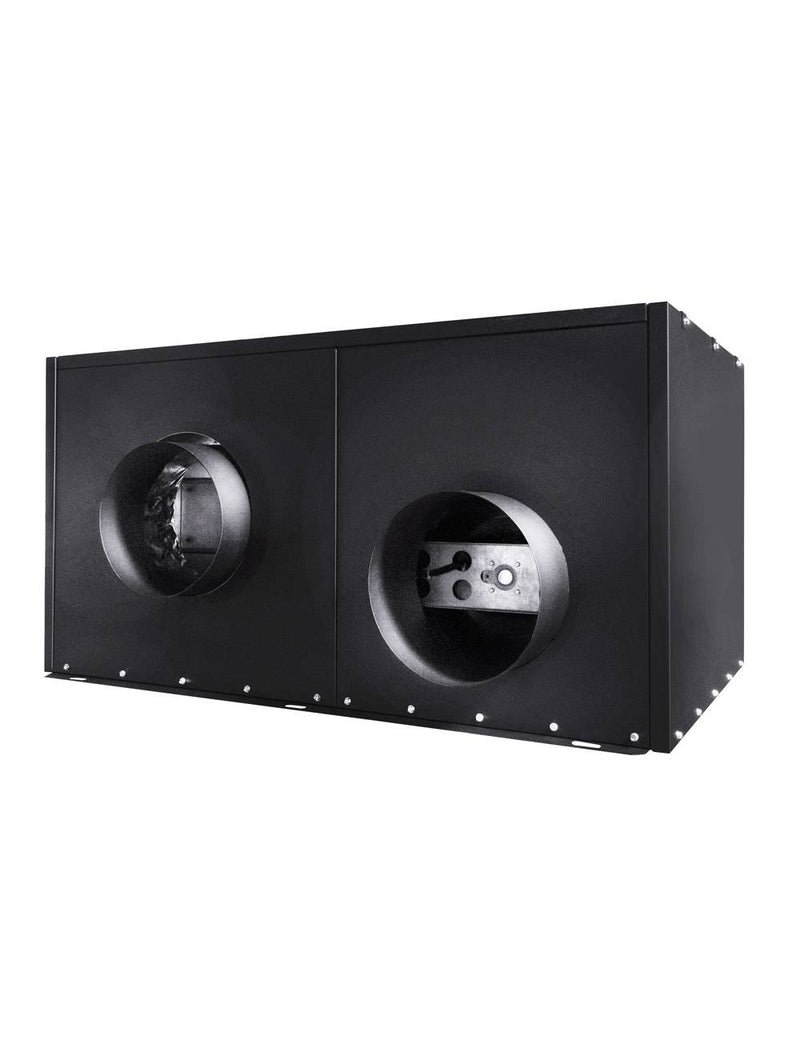

• DS packaged central-ducted cooling system can be mounted anywhere available (floor, ceiling or attic) for concealed, quiet and easy installation.
• Pump-down refrigeration system for easy service
• Automatic expansion valve for better humidity control
• WM-8500DS ducted systems have adjustable evaporator condenser fans. Fan speed is adjustable because they use speed controllers that are wired in line with the blower motors. Fan speed control regulates flow of current to the fan.
• Adjust evaporator fan speed through the knob to work with various length ducts
• Adjust condenser fan speed through the knob to work with low and high ambient temperatures
• DS cooling system shall not be exposed to temperatures higher than 110 °F or lower than 50 °F.
• If the exhaust ambient temperature exceeds 110 °F, one size larger unit must be used.
• Low ambient kit for below 50°F cold weather operation
• 4500~12000 Btu/h cooling capacities
• Only 45 dBA noise level in the wine cellar
• Digital temperature controller with automatic defrost cycle
• This unit can vent outdoors
• Secondary drain pan for optional condensate pump
• DS evaporator units have a special coating
• Coil dipped and baked with LRCCoat anti-corrosion coating



SPECS & RESOURCES

• DIMENSIONS: 45"L x 34"W x 25"H
• WEIGHT: 220 lbs
• COVERAGE SIZE: 2000 Cubic Feet
• CFM: 750
• BTU/h: 8500
• ELECTRICAL REQUIREMENTS: 115V 60Hz 17A. Power supply must be grounded with 3 prong plug.



AVAILABLE OPTIONS and CONFIGURATIONS:

• Optional Low Ambient Kit: Recommended for applications where the low ambient temperatures in the condensing unit mounting area will be below 50°F. Feature is factory-installed.
• Temperature Control Panel with Heating Function: Works in conjunction with your home's air forced electric heater to ensure that your cellar never goes below the programmed temperature.

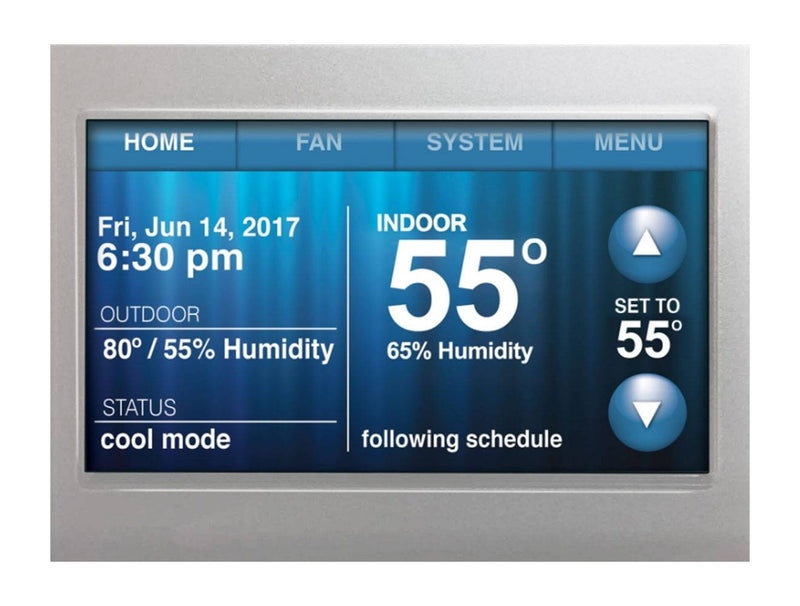

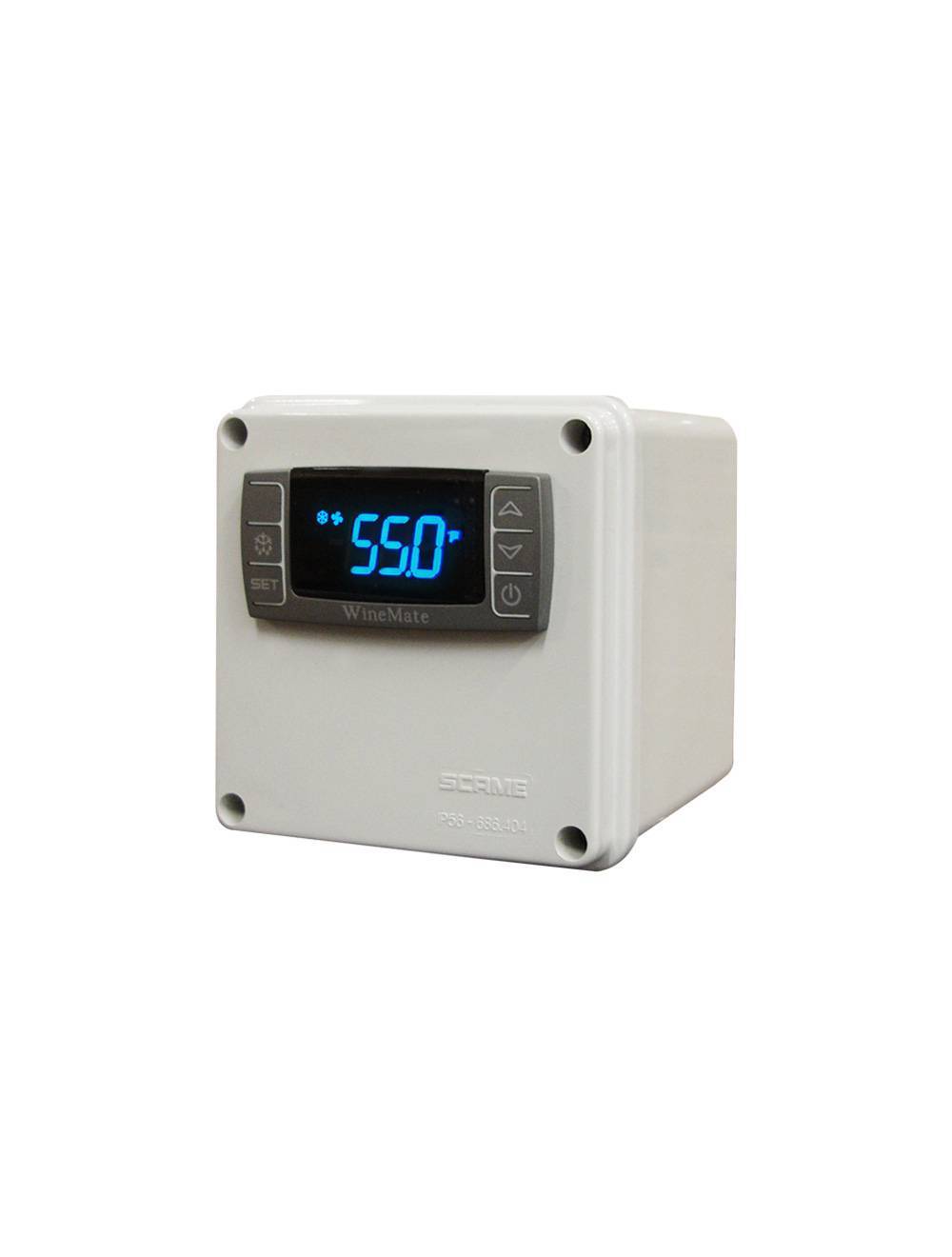

• Touch button temperature controller with bottle probe or touch screen WiFi thermostat with humidity monitoring
• Add the Wine Bottle Probe to receive the most accurate reading of your wine's temperature. The Wine Bottle Probe measures the temperature of the liquid inside the bottle to ensure your wine is kept at the ideal temperature and plugs directly into your cellar cooling system.



Important information regarding Prop. 65 for CA residents.
Prop. 65 Warning Label (PDF)

HEAT LOAD CALCULATORS

Note: Wine-Mate cooling systems cannot have both the Bottle Probe and Wi-Fi optional features plugged in at the same time. It can only be one or the other.

Compare Sound Levels: dBA in Cellar vs 3 Feet from the Cooling Unit

(Click image to enlarge PDF)

Note: These cooling systems require professional installation by licensed refrigeration technicians.

Please allow 2-3 business weeks for production. Thank you.

• View the Ventilation Guidelines for this unit (PDF)
• Owner's Manual (PDF)
• Spec Sheet (PDF)
• Select a Cooling Unit for Glass Cellar
